Basic Research
========================================

Purpose

The purpose of basic research is to ascertain through laboratory testing the physical properties of bedrock in order to translate various log results obtained at the Iwanohara site; for elucidating the residual gas saturation rate by clarifying the trap mechanism; and predicting the long-term behavior of CO
2 by identifying the chemical reaction between CO2 and surrounding bedrock.


----------------------------------------

Seismic Wave and Specific Resistance Tests Using Sandstone Samples

Using samples of sandstone, which is the typical bedrock used as the reservoir in aquifer storage, the change of seismic waveforms (P-wave) before and after CO
2 injection was measured, and a decline of its velocity was confirmed. The obtained results were utilized in the analysis of seismic tomography.

Schematic of test setup


Seismic waveforms before and after CO2 injection


Using the same sandstone samples, the specific resistance (electric resistance per unit volume) between electrodes was measured before and during CO
2 injection. Because CO2 does not conduct electricity, the specific resistance will increase if CO2 flows in. In this test, it was observed that the specific resistance gradually increased when CO2 was injected from the lower side of the sandstone sample.

Layout of electrodes in specific resistance measurement

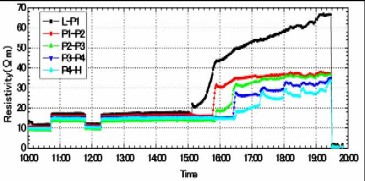

Time-lapse change of specific resistance by CO2 injection


From these tests, it was confirmed that CO
2 injected into the aquifer can be monitored through the changes of seismic wave velocity and specific resistance.


----------------------------------------

Evaluation of CO2 Saturation by Sonic Logging Based on Gassmann Theory

Based on the Gassmann theory (a theory that explains the change of seismic wave velocity when the voids of a porous material are filled with water or gas) which has been employed in the field of oil and natural gas, the CO
2 saturation was evaluated using the sonic logging results obtained at the Iwanohara test site.

The relationship between P-wave velocity and CO
2 saturation was investigated using the data obtained at depths of 1,115m, 1,116m, and 1,117m at the Iwanohara site. From the results, it was revealed that if the CO2 saturation is 20% or lower, CO2 saturation can be estimated using the sonic logging results and the Gassmann theory.

The obtained results are in agreement with the results of NMR logging (nuclear magnetic resonance logging: a method to measure the water amount and the void size in the formation by giving a magnetic pulse to the hydrogen nucleus in the formation and measuring its response) which was conducted separately. This made possible a quantitative evaluation of the saturation of CO
2 which is injected into the reservoir.

Relationship between P-wave velocity and CO2 saturation




----------------------------------------

Evaluation of Mineral Fixation by Geochemical Reaction

The calcium concentration in the solution was measured by conducting a reaction test using core samples and the formation water taken at the Iwanohara test site. It was found that, with the lapse of time, calcium dissolved out from the core samples and the calcium concentration in the solution increased. With the decrease of hydrogen ions as calcium dissolves out, the formation water is neutralized and it tends to dissolve CO
2. If the formation water returns to near neutrality, calcium carbonate will be deposited (such as calcite). Hence, there is the possibility to eventually produce mineral fixation which is a stable storage form of CO2.

Schematic of laboratory reaction test setup


Change of calcium concentration


Using a phase contrast electron microscope, the dissolution rate of an anorthite was measured. This revealed that the dissolution of minerals due to CO
2 is temperature dependent. It was found that the dissolution rate of minerals 1,000m below the Iwanohara site, where the temperature is around 50 °C, is approximately five times faster than that near the ground surface where the temperature is approx. 25 °C.

Dissolution of mineral surface captured by a phase contrast electron microscope


Dissolution rate of anorthite


At the Iwanohara site, formation water was sampled at a depth of 1,118m where CO
2 is stored and at a depth of 1,108.6m where no change was found via both specific resistance logging and sonic logging. From such analysis, it was found that bicarbonate ions (HCO3) increased at 1,118m, indicating that CO2 was dissolving at that depth. Calcium and iron were also found to increase, which means that a reaction between CO2 and minerals was taking place. Based on the aforementioned, it is considered that mineral fixation will advance quicker than predicted at the Iwanohara site.


Change in the composition of formation water at the Iwanohara test site


----------------------------------------

Achievements

・
Knowledge was provided for the interpretation of sonic logging and specific resistance logging results concerning the reach of CO2 to the observation wells, as well as for the preliminary review of cross-well seismic tomography performed at the Iwanohara site.
・
Using the P-wave velocity obtained by sonic logging, the CO2 saturation near the observation wells was estimated based on the Gassmann theory. It was found that the obtained results were well in agreement with the results of NMR (nuclear magnetic resonance) logging.
・
It was identified that mineral fixation of CO2 could be expected at the Iwanohara site because minerals such as Ca, Mg and Fe are abundant in this area.


----------------------------------------

Future Challenges

・
The residual gas trap mechanism which is garnering attention as an important trap mechanism needs to be elucidated.
・
The seal capacity of argillaceous bedrock which holds promise as a seal layer needs to be evaluated by injecting CO2 into the rock.
